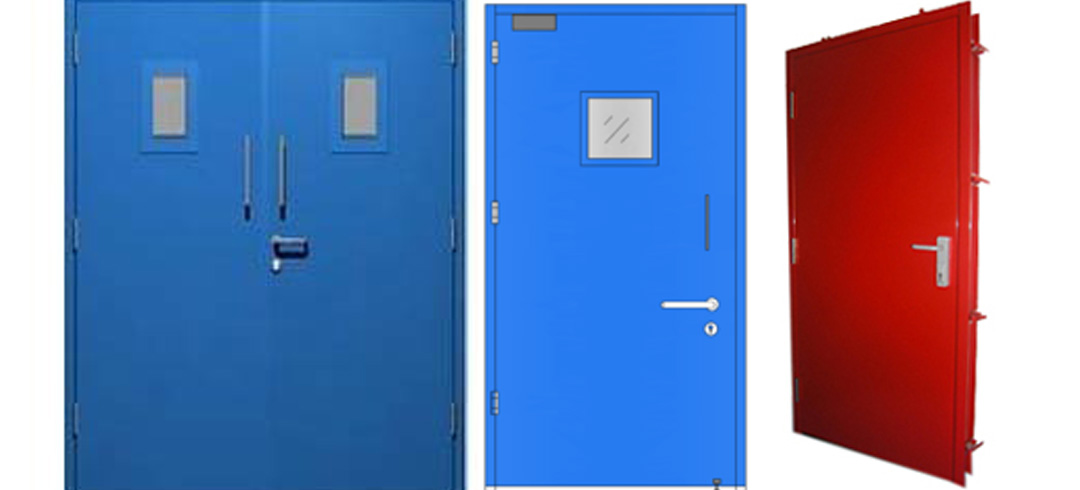

General Purpose HMPS Doors

General Purpose HMPS Doors

General Purpose  HMPS Doors

In this GI/MS/SS sheet having thickness of 20 SWG is used to fabricate the panel and the overall thickness of the panel is 40 / 42 mm. The panel is provided with stiffeners inbuilt to affix hardware based on the configurations or BOQ. Herein the insulation material is not used but instead Honeycomb craft paper / Thermocole is used as an infill material. The frame is fabricated from 16 SWG GI/MS/SS sheet having single rebate. Double rebate or engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.
