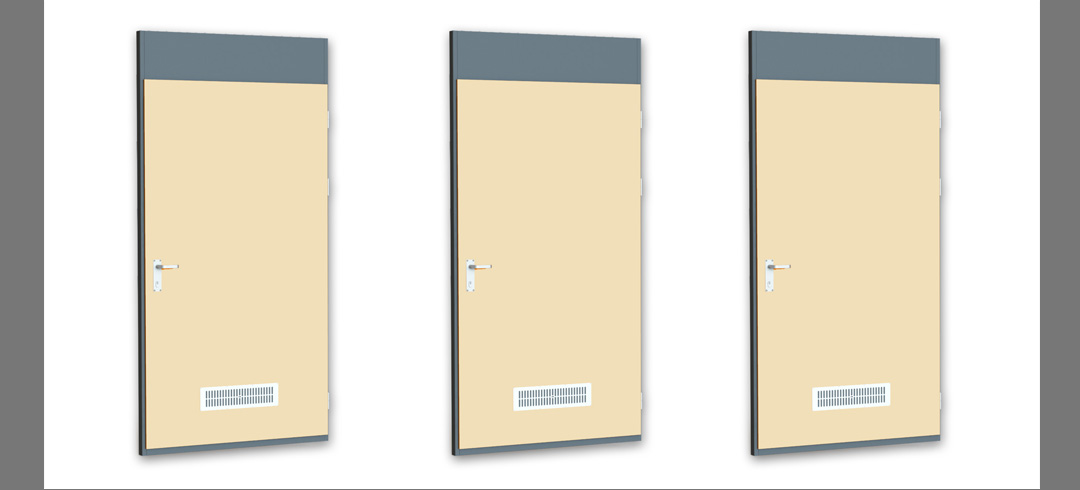

Single leaf door stands for door with single panel with the maximum door width available is 1150 mm. In this MS sheet having thickness of 6 mm with flat having size of 100 x 100 x 6 mm are used for fabrication of the panel. The frame is fabricated from Angle having size of 100 x 100 x 6mm. Engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.

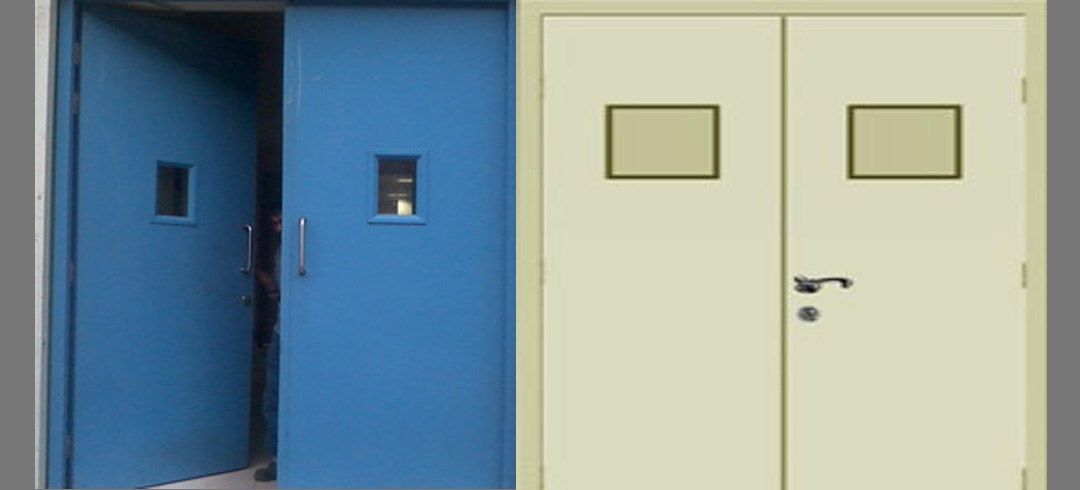

`Radiant Passive’ Plate type Double Leaf hinge door:
Double leaf door stands for door with double panels with the maximum door width available is 1150 mm. In this MS sheet having thickness of 6 mm with flat having size of 100 x 100 x 6 mm are used for fabrication of the panel. The frame is fabricated from Angle having size of 100 x 100 x 6mm. Engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.

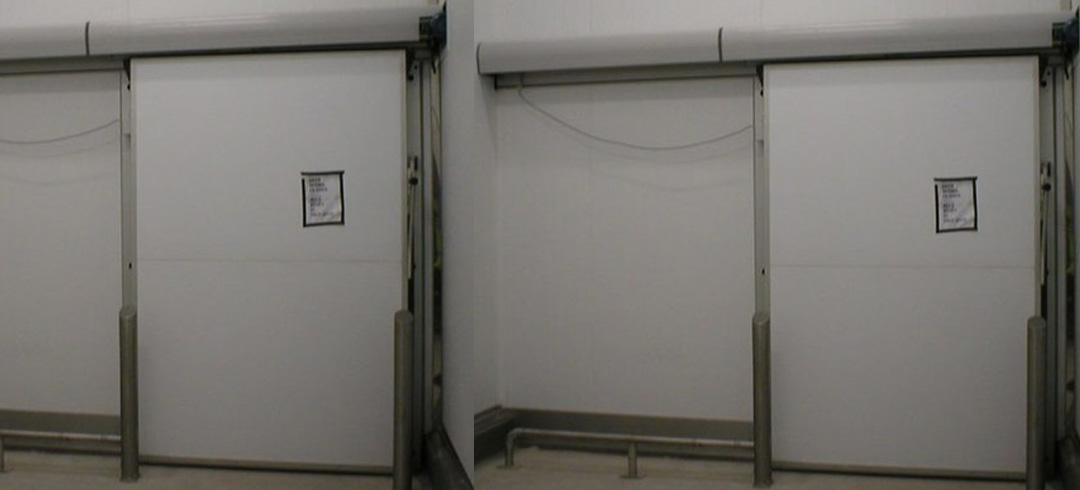

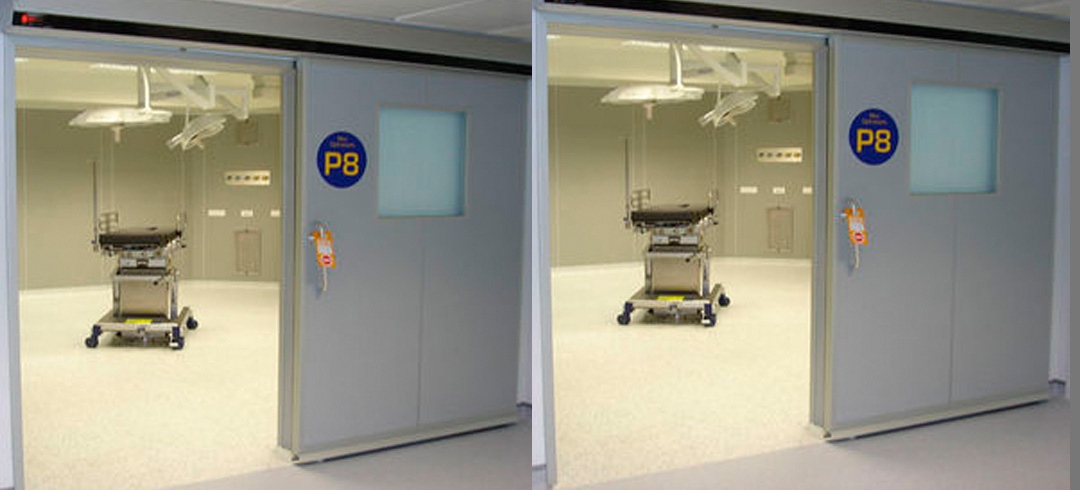

`Radiant Passive’ Plate type Auto Sliding Door:
This type of door is fabricated from MS sheet having thickness of 6 mm. This door can be made in Single leaf or Double leaf (Bi-parting Door) or depending upon the requirement and suit the application and conditions prevailing at site. This door comprises of Sliding Rail (made from 75 x 75 x 5 mm angle) to guide the panel, fusible link (fire rated at 68 deg.C), wire rope, bottom rollers to guide the panel at the bottom, counter weights etc. This door is always kept into open position and at the time of fire break, fusible link melts which allows the counter weight hung to the wire rope to pull the panel automatically close and to prevent fire from spreading further. Standard accessories are included in the supply.
This door can be made available with Automatic Powered Operation options like Electrical, Hydraulic, Pneumatic, PLC controls & Interfaces.
`Radiant Passive’ Plate type Non Auto Sliding Door:
This type of door is fabricated from MS sheet having thickness of 6 mm. This door can be made in Single leaf or Double leaf (Bi-parting Door) or depending upon the requirement and suit the application and conditions prevailing at site. This door is to be operated or closed manually and comprises of Sliding Rail (made from 75 x 75 x 5 mm angle) to guide the panel, bottom rollers to guide the panel at the bottom etc. This door is always kept into open position and at the time of fire break manually has to pull the panel to close and to prevent fire from spreading further. Standard accessories are included in the supply.
Options:
This door can be made available with Automatic Powered Operation options like Electrical, Hydraulic, Pneumatic, PLC controls & Interfaces.
