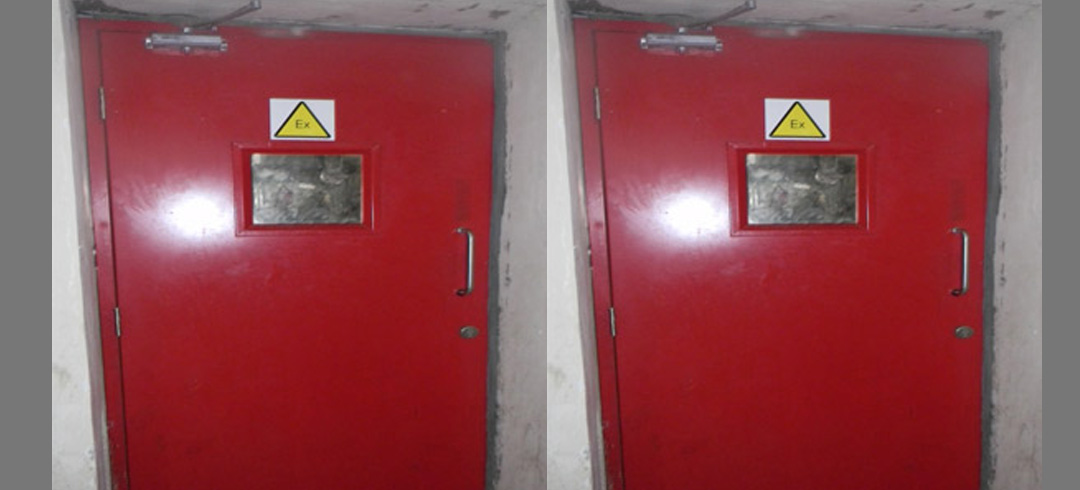

Single leaf door stands for door with single panel with the maximum door width available is 1150 mm. In this GI/MS/SS sheet having thickness of 20 SWG is used to fabricate the panel and the overall thickness of the panel is 40 / 42 mm. The panel is provided with stiffeners inbuilt to affix hardware based on the configurations or BOQ. For insulation purpose Core board is used as an infill material to provide with integrity, stability and insulation. The frame is fabricated from 16 SWG GI/MS/SS sheet having single rebate. Double rebate or engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.
`Radiant Passive’ Double Leaf Hinge Door:
Double leaf door stands for door with double panels with the maximum door width available is 2300 mm. In this GI/MS/SS sheet having thickness of 20 SWG is used to fabricate the panels and the overall thickness of the panels is 40 / 42 mm. The panels are provided with stiffeners inbuilt to affix hardware based on the configurations or BOQ. For insulation purpose Core board is used as an infill material to provide with integrity, stability and insulation. The frame is fabricated from 16 SWG GI/MS/SS sheet having single rebate. Double rebate frame or engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.

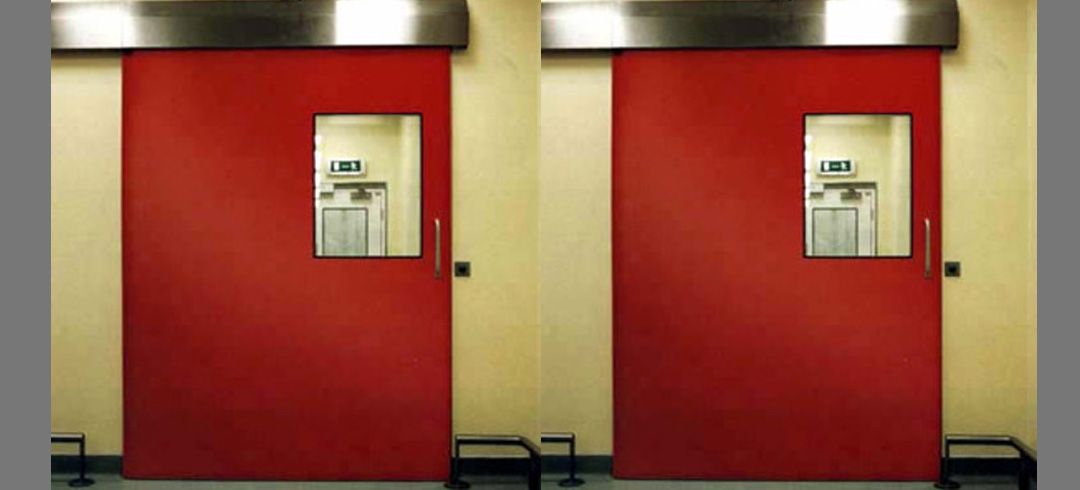

`Radiant Passive’ Auto Sliding Door:
This type of door is fabricated from GI/MS/SS sheet having thickness of 20 SWG with overall panel thickness of 40 / 42 mm. Core board is used as an infill material to provide with integrity, stability and insulation. This door can be made in Single leaf or Double leaf (Bi-parting Door) or depending upon the requirement and suit the application and conditions prevailing at site. This door comprises of Sliding Rail to guide the panel, fusible link (fire rated at 68 deg.C), wire rope, bottom rollers to guide the panel at the bottom, counter weights etc. This door is always kept into open position and at the time of fire break, fusible link melts which allows the counter weight hung to the wire rope to pull the panel automatically close and to prevent fire from spreading further. Standard accessories are included in the supply.
This door can be made available with Automatic Powered Operation options like Electrical, Hydraulic, Pneumatic, PLC controls & Interfaces.

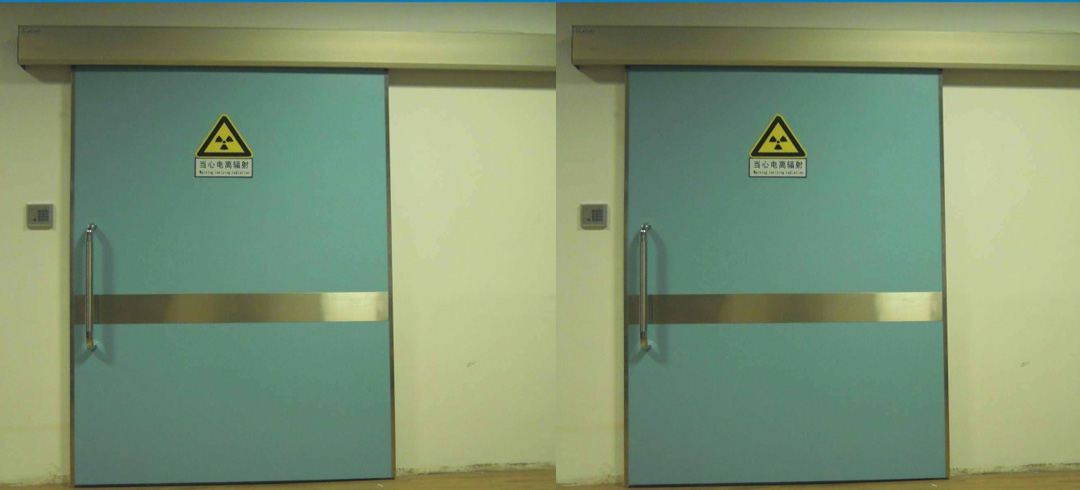

`Radiant Passive’ Non Auto Sliding Door:
This type of door is fabricated from GI/MS/SS sheet having thickness of 20 SWG with overall panel thickness of 40 / 42 mm. Core board is used as an infill material to provide with integrity, stability and insulation. This door can be made in Single leaf or Double leaf (Bi-parting Door) or depending upon the requirement and suit the application and conditions prevailing at site. This door is to be operated or closed manually and comprises of Sliding Rail to guide the panel, bottom rollers to guide the panel at the bottom etc. This door is always kept into open position and at the time of fire break manually has to pull the panel to close and to prevent fire from spreading further. Standard accessories are included in the supply.

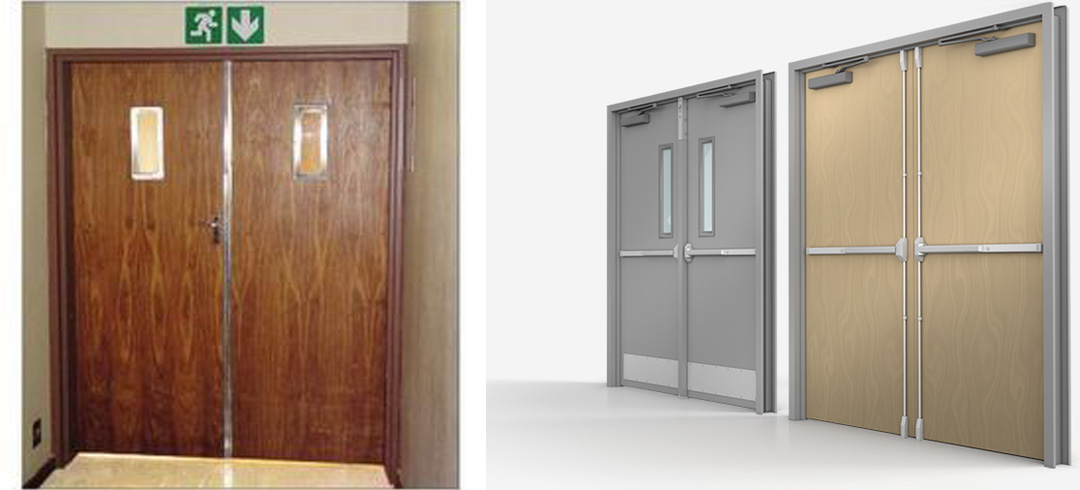

`Radiant Passive’ Wooden Door with Metal Frame:
In this type of door on both faces of the panel, plywood is used whereas Core board is used as an infill material to provide with integrity, stability and insulation. The overall thickness of the panel is 46 / 48 mm. The frame is fabricated from 16 SWG GI/MS/SS sheet having single rebate. Double rebate frame or engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.

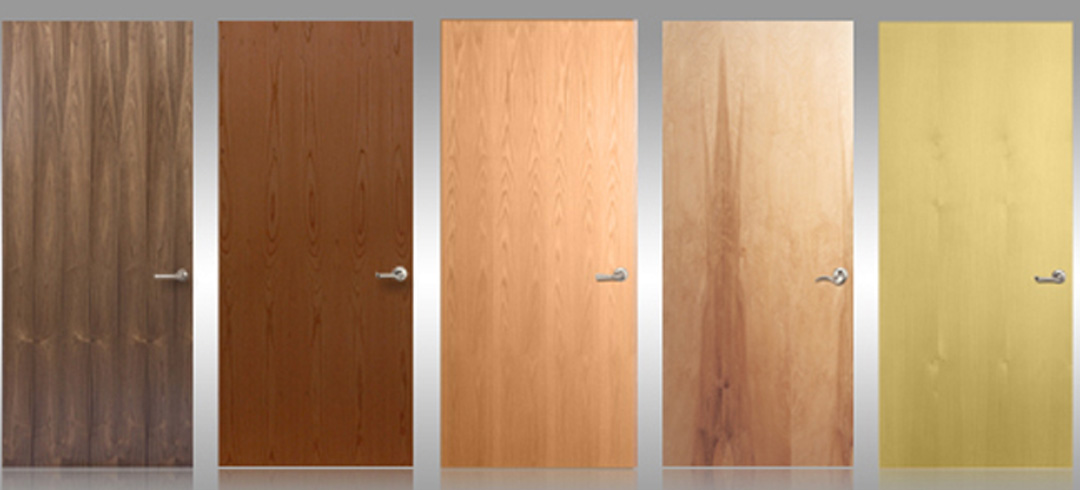

`Radiant Passive’ Wooden Door with Wooden Frame:
In this type of door on both faces of the panel, plywood is used whereas Core board is used as an infill material to provide with integrity, stability and insulation. The overall thickness of the panel is 46 / 48 mm. The frame is made from teak wood having single rebate. Double rebate frame or engineer special frame profiles to complement wall construction and architectural style can be made available on specific request. Accessories / Iron mongery are not included but made available optionally.
